JavaScript Turtle Graphics

Basic JavaScript Grammar

This is a brief tutorial on JavaScript. Read as much as you can, but come back to review or to learn a new concept. If you need more depth, there are other tutorials and guides on JavaScript on the internet or in your library.

Comments

A comment is a note left by the developer to others, including the developer, about some aspect of the code. This makes the code easier to understand. Comments are not executed by the JavaScript interpreter, so they provide no functionality. Yet they are very (important as a way to communicate intent. Comments can also be used to turn off sections of code during testing.

JavaScript has two kinds of comments.

• A line end comment starts with a double slash // and runs to the end of the current line. The line may or may not contain other JavaScript code before the double slash.
// comment to the end of the line a = 1 // comment after code to end of line
• A bounded comment is fenced in by a slash-star /* start sequence and ends in a star-slash */ sequence. Bounded comments may cover several lines, it may be a whole line of code, or it may be within a line of code. Bounded comments may not be nested as it will end on the first occurrence of star-slash */. This type of comment is used by several other languages including C, C++, Java, and CSS.
/* a bounded comment may span more than one line */ /* a bounded comment may be a single line */ a /* a bounded comment may be within code */ = 1; /* bounded comments /* cannot be nested */ syntax error */

Functions

JavaScript allows the programmer to define blocks of code that can be used over and over. These blocks are called functions. Some functions may take arguments as inputs, others do not. It is up to the programmer to decide what the function will do, whether it takes parameters and whether it returns a result. A function may be called a procedure, a subroutine, or other names. These names are generally talking about the same thing that JavaScript calls a function. A function is invoked in a statement by using its name followed by a opening and closing parentheses '(' and ')'. There may be arguments between the parentheses.

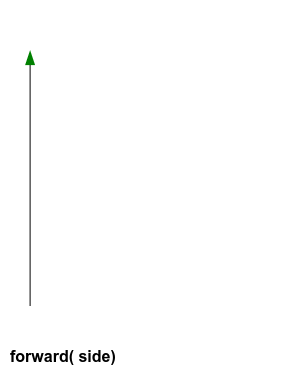

A simple example could be a function that draws a square on the canvas. The turtle is moved to where the shape is required and the function is invoked.

Good functions have no side effects, that is, they should not change the value of global variables. So a function that draws a shape should leave the turtle in the same position as it was when the function was called and pointing in the same direction. Of course there are exceptions like a function that draws a fancy corner. The point is, the function should be predictable and not have a side effect which would manifest itself as a nasty bug down the road.

Variables

Variables are used to store a value for later use. Sometimes it is for convenience. For instance, it is a lot easier to remember and type pi, than it is to remember and type 3.141596... Sometimes a variable is used is to remember a partial result, like how many times has the race car gone around the track or how many brothers and sisters do you have.

Variable names that have a clear meaning make code easier to read and understand. For example: lapsCompleted = 3 is easy to understand. l = 3 can be difficult to understand. What is l" and how is it being used? Is that the letter l or the digit 1. Variables have some restrictions on naming:

• cannot start with a digit.
• cannot contain an operator character, any of +-%/*!~<>{}[]()<>;,.'"&|\
• cannot be a key word (a word reserved by the JavaScript language (e.g., if, then, var, while, function).
• can contain any lower or upper case letter.
• can contain one or more digits as long as it is not the starting character.
• can contain any of the following symbols: $_. These can be the starting character, but usually are not, mainly because of conventions of other languages.

So the following are acceptable as variable names:

• allowance,
• nationalDebt,
• national_debt,
• gradePointAverage,
• address2,
• sunshinePercent.

The following are unacceptable as variable names:

• 2week,
• national-debt,
• if,
• sunshine%,
• function.

Variable names are case sensitive, so Dog and dog and doG are different names. It usually is not a good idea to use names with the only difference being the case of the letter.

Variables are declared with the var keyword. Variables may be initialized or assigned at the same time as they are declared. JavaScript is not strict about declaring variables, but it is a good idea to do so.

Each variables should be declared only once by using the reserved key word var and should be declared before they are used elsewhere.

Data Types

JavaScript has four primitive data types. They are:

• number (e.g., 1, 1.1, -2)
• string (e.g., "a", "hi", "How are you?", 'What do you know?')
• Boolean (e.g., true, false)
• undefined

A primitive data type is only composed of itself or data types like it, e.g., 1.1 is 1 + .1; "hi" is "h" + "i". Boolean values cannot be combined, they are simply either true or they are false. A variable is undefined if it is not initialized or assigned prior to using its value. It can also happen when setting a variable to the results of a function that does not return a value. Some functions return undefined when they can't return what was requested, for instance when something isn't found. Undefined can be very useful and very hard to debug in some cases.

Additionally JavaScript has compound data types including a array, e.g., [1,2,3, "fish"] is an array of data elements, each element may be a different data type.

Another compound JavaScript data element is object. An object is similar to a list in that it is a collection of values, but in an object each value or attribute is named. Let's say you want an object to define the characteristics of a dog. You might define a dog object as in the following code.

An object may be a collection of primitive data types and compound data types like lists and other objects. Internally all data within JavaScript is handled as an object. Even a JavaScript function is treated as an object.

JavaScript is said to be typeless. This really means that the language doesn't check the type of a variable when setting it. So you can set variable a to 1 and a while later set a to "hi." JavaScript doesn't mind a bit, but this can lead to errors especially when unintentionally reusing a variable or having a number when you expect a string.

Functions with Parameters

A more powerful version of a function is a function that is called with one or more parameters. A parameter is named like a variable and may be any data type. It may be just about anything that the function needs to complete its task. There is no limit to the number of parameters that a function can use, but it is usually wise to keep the number down to the minimum required for the particular function.

A function is invoked with its name and supplying arguments as needed. The value of the arguments is passed to the function parameters. Notice how inside a function, the passed values are called parameters and when the function is invoked, the values are called arguments. In JavaScript functions are said to be called by value, so the value is copied from the argument to the parameter. The function cannot affect the value of the arguments in the caller. (There is an exception to this with passing objects in a certain way, but that is left as an exercise for the reader.)

A function may also return a value by using the return key word. For example let's say you want a function that produces the cube of a number. Such code would look like the following.

Expressions

Expressions are a way of combining variables, numbers, strings and Boolean values into other forms. Expressions have operators that act upon one or more operands. Much of this is familiar. Adding two numbers to produce a sum. Subtracting one number from another to find a difference. Dividing one number by another to get get a dividend, proportion or ratio.

Assignment Operators

Assignment operators are used to assign values to variables. You can't change the value of number or a string as these are constantor immutable (unchangeable).

Number Operators

Number operators are used to manipulate numbers to get sums, differences, products, dividends, remainders, etc.

String Operators

There is a operator to manipulate strings.

Boolean Operators

There are a set of operators to manipulate Boolean values. Remember that a Boolean can only be either true or false.

Comparison Operators

Comparison operators are used to compare two operands to result in a Boolean true or false value. Not that equality is similar to assignment.

The following is a list of things to consider when doing comparisons. (from the Mozilla development foundation).

• Two strings are strictly equal when they have the same sequence of characters, same length, and same characters in corresponding positions.
• Two numbers are strictly equal when they are numerically equal (have the same number value).
• NaN (Not a Number) is not equal to anything, including NaN or undefined.
• undefined is equal only to itself.
• Positive and negative zeros are equal to one another.
• Two Boolean operands are strictly equal only if both are true or both are false.
• Two distinct objects are never equal for either strict or abstract comparisons.
• An expression comparing Objects is only true if the operands reference the same Object.
• Null and Undefined Types are strictly equal to themselves and abstractly equal to each other.

Simplified Operator Precedence

JavaScript has some twenty levels of precedence that is described more fully in the advanced section of this document. The precedence of the operators discussed up to this point is summarized in the following table.

Statements

Usually there is one JavaScript statement per line, but you can put more on a line as long as each statement is separated with a semicolon ';'. In modern browsers this semicolon is optional. Some programmers like to end each statement with a semi-colon anyway. Some statements may span more than one line, especially complex assignment statements. JavaScript determines the end of a statement explicitly with the presence of the semi-colon or it guesses the end of statement by the context of the various lines of code as in the following example.

Now let's try some Turtle Graphics functions. These statements are simple function calls. turn the turtle the right 90 degrees, right(90), and move the turtle forward 10 units, forward(10).

This tells the turtle to move and turn, move and turn, move and turn, move and turn to complete a square as in the following figure.

Some of JavaScript's constructs come in pairs. Strings are enclosed in pair of single quotes (apostrophes) or a pair of double quotes. A single quote may appear in a string set off with double quotes and a double quote may appear in a string set of with single quotes. An opening parentheses, square bracket, or curly brace (brace), must be matched with the closing parentheses, square bracket or curly brace.

Basic JavaScript Concepts

Conditionals

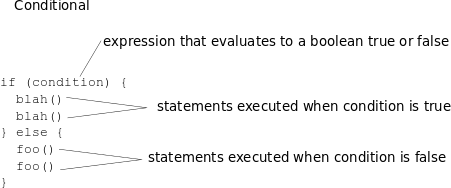

A conditional is code that is executed when some Boolean condition is true or false. Conditionals start with an if key word followed by an expression, called the condition, contained within parentheses which evaluates to a Boolean value, either true or false. This is followed by a single statement or a block of statements surrounded by curly braces that is executed if the condition is true. This statement or group of statements is sometimes called the then clause of the conditional. Many programmers always use the curly brackets to make their code more consistent, even if there is only a single statement. The if statement can be followed immediately by the else keyword followed with a single statement or a block of statements surrounded by curly braces. This statement or group of statements is sometimes called the else clause of the conditional. The else clause is executed if the condition is false.

Note: JavaScript allows the use of the short cuts i++ instead of "=i+1 and i-- instead of i=i-1. The long form is used here and most of the examples to make the code easier to understand and less prone to errors.

Iteration

Computer science calls the process of doing things over and over, iteration. Turtle graphics give you a way to do iteration with the repeat(count, function) statement. This lets you execute a defined function a number of times.

So in using a while statement, there are three things you need to do:

• Set up the initial condition of the loop.
• Test the condition to see whether to continue or not. It is important that there be a condition that will turn false to prevent the code from looping forever, a so-called infinite loop.
• Change the condition within the loop.

In the example, the condition being tested is the turtle running off of the screen. Since its path is enlarged each loop, eventually it should run off the screen and prevent an infinite loop.

In this example, the condition is initialized with i = 0. The continuing condition is i > 10, so the stopping condition would be i >= 10. The condition is changed within the loop with i = i + 1.

Sometimes you want the repetition to continue until some other criteria is met. Below is an example of a spiral that will expand until it moves off of the canvas. This example also shows a variable that is increased in value for each loop to make the length of the sides increase. The condition for continuing the loop is whether the turtle remains withing the bounds of the canvas. This is inherently initialized when the program starts. It is changed every iteration when the turtle moves. It should be noted that if the turtle does not move in bigger and bigger paths, the program will get stuck in an infinite loop.

JavaScript has other way of doing iteration loops, but a commonly used one is the for loop. It uses the for key word followed by three sub-statements enclosed in parentheses and separate with semi-colons. The three sub-statements: initialization, while condition, and iterator. Initialization is used to initialize the value of the iteration variable or iterator. This variable is commonly named 'i', but any valid variable name can be used. Make sure to include a declaration for the iterator using the keyword var somewhere within the function. The second part, the while condition is an expression that is evaluated before every loop and must evaluate to true for the loop to be executed. The third and last part is the iterator where something is done to change the looping variable at the bottom of the loop. Most of the time the parts are fairly simple as in the following now familiar example:

Scope of Variables

Variables declared within a function are local to that function and can only be accessed within that function. These variables are called local variables. Variables declared outside functions and variables that are not declared with the var can be accessed by any function. These variables are called global variables. Most programmers try to avoid global variables to limit the number of functions that can change the value of a variable.

Let's say you want to use the variable i within an iteration to keep track of how many times the loop has been executed as is common practice. If you don't declare i with var within each function, i will default to being a global variable, accessible by all functions that don't declare i locally. Let's say you want to draw 3 squares using a square function that draws the four sides. The code looks like:

So what happens when this is executed? For the first loop of the main program the variable i is set to zero and the function square is called. Square also sets the variable i is also set to zero. No problem yet, but as the sides are drawn, i is incremented to 1, 2, 3 and finally 4. When the square function returns, the variable i is 4. When the code loops back to the for instruction for the loop check, i being 4 is not less than 3, so the looping stops and only one square is drawn. Not exactly what was intended.

To fix this, one might try to declare i with the var instruction. If the declaration is outside of the functions, at it is in the following block of code, i is declared as a global. Since any undeclared variable is a global by default, this declaration has no effect.

The proper way to fix this is to either change the variable names so there is no conflict or to declare the variable within the function to make it a local variable. Changing the name can be difficult for large programs, so let's learn to use local variables when we can. In the following block of code, the variable i is declared as a local within the square() function (that is, within the outer most curly braces of the function definition). Now it is as if there were two variables named i and they are totally independent of each other, one local to the square function and one global. The code will draw the three squares as desired.

In general programmers try to avoid using global variables. This is because they can get changed by any function and sometimes it is hard to know which function is affecting the variables. Local variables are only affected within the function so it is easier to find the culprit.

As a side note. In the above example, the parameters for a function are automatically local variables, declared with the function definition. So side is a local variable within the square() function.

Advanced JavaScript Concepts

Advanced Assignment Operators

We talked about the assignment operator =. There are other more specialized assignment operators. In general these should be avoided because they do cause some confusion and may lead to bugs if the symbols are interchanged. (+= is an assignment adding the right hand side to the left hand side of the expression. =+ is an assignment of the positive value of the right hand side to the left hand side of the expression.)

Bit-wise Operators

There are operators to perform bit-wise operations on numbers. These numbers are restricted to 32 bits, which is smaller than normal integers and floating point numbers (52 bits). Some of these operations are similar to the Boolean operators, except that they work on individual bits instead of the value as a whole. While this is a more advanced topic, it is nice to know that more exists in case you encounter them, or need them for a particular problem. The bit-wise operators are shown in the following table. The binary equivalents of the decimal numbers are shown in parentheses.

Grouping Operator and Order of Precedence

Using a set of parentheses is used to group operands and operators to affect the order of evaluation. Operators have an order of precedence that dictates the order in which the operators are evaluated, e.g., multiplication takes precedence over addition, so multiplications are done before additions. The grouping operator takes precedence over other operators, so what is within the parentheses is evaluated before what is outside the parentheses. Parentheses may be nested. When in doubt and order matters, use parentheses.

The following table is ordered from highest (20) to lowest (1) precedence (taken from the Mozilla.org. This is the full set of precedence. Many of the operators are beyond the scope of this simple introduction, but are included to inspire you to learn more (not to scare you).

Recursion

Recursion is special way to to something over and over again. It is similar to iteration in that regard. The main difference is that iteration is a loop within a single routine that is executed over and over. Recursion is a function that calls itself until some criteria is met. A T-shirt sums it up nicely: "If you don't understand recursion, read again." Some problems are easier to solve with iteration and some are easier to solve with recursion. So recursion is another tool for your toolkit.

Consider a Koch line. Take a line of a given length. Divide that line into thirds. Where the middle third is, draw an equilateral triangle (a triangle with all three sides the same length and the corner angles are also all the same, 60 degrees). Erase the middle segment, leaving four segments each of the same length. Repeat the process for the remaining four segments and so on until the segment length is 2 pixels. The following code does just that.

Hint: you can change the value in the conditional (the 20) to other values to show more or less detail. The Koch line is the basis for the Koch Snowflake that uses three Koch lines.

There are several more complex examples of recursion here. The Koch Snowflakes, the Sierpinski Curve and the Symmetrical Tree.

Animation

Animation is the process to bring a drawing to life. Animation presents drawings that are slightly different. The differences are perceived as motion. The two main ways to do animation is to either incrementally add to a drawing more and more complex parts or to completely redraw the figure. The drawing that is presented is called a frame The human eye will blend motion between two different frames that are presented quick enough. Movies are about 24 frames a second and television is 30 frames a second (or 1/30 of a second per frame also called .033 seconds or 33 milliseconds per frame). Making changes too quickly may be invisible to the human eye. Changes should be made consistently to avoid a jerky appearance.

This turtle graphics provide two functions for animation: animate() and delay() that are discussed more thoroughly below.

Animate

The animate() function is used to call the same function over and over at a fixed period of time. The Turtle Graphics analog clock is an example that uses the animate function to redraw the clock and its hands every second.

Delay

The delay() function is used to call a function once after a period of time. For an animation there can be a series of functions that are invoked in a time sequence to provide the animation.

The Dividing a Circle example uses the delay() function to draw a set of circles around a preceding set of circles. This is an example of building up a drawing of more and more complex parts.

The Koch Snowflake example uses the delay() function to draw successive drawings. This example shows the power of using both the delay function to draw a snowflake of a particular order and recursion to build the snowflake of a desired order.

Under the Hood

Source Code

More can be learned by looking at the JavaScript source code that implements the turtle graphic functions. While the functions are designed to hide the details of the mathematics (mostly trigonometry) that are necessary to plot a line of a given angle and length on a canvas that only understands the x and y coordinates of a Cartesian coordinate system.

The source code for this page can be found in several ways. (Browsers change all the time, so you may need to search around the menus to find the option.)

• Most browsers: control- or command-u.
• Firefox: select the menu Tools>Web Developer>Page Source.
• Chrome: select the menu View>Developer>View Source.
• Safari: select the menu Develop>Show Page Source.

The following modules provide the basic functionality of the JavaScript Turtle Graphics.

• turtle.html defines the layout and content of the page as basic HTML. This page contains the text of the language reference, the help text and this tutorial.
• turtle.css defines the styling used to make the page more readable as a Cascading Style Sheet (CSS). CSS allows the artistic design of the page to be separated from the functional underpinnings of the page.
• turtle.js defines the basic turtle graphics functions for JavaScript. In theory this module could be included in other programs which use turtle graphics.
• turtle_console.js defines the behind the scenes mechanisms to make this page work as a code development laboratory. It has the functions to pop up this tutorial and functions to hide and show the language reference and definitions sections of the work area. It also allows commands and definitions to be entered and executed.
• examples.js is a file generate by a tool. The tool takes the source code for an example and coerces it into a string expression. The examples.js file has one string for each example. An example can be loaded directly onto the coding area of the console where it may be viewed and modified. There are two ways to load an example. One is by using the example select button of the IDE. The other is by specifying the example in the url of turtle graphics, as in https://TurtleGraphics.fun?example=clock" The "TurtleGraphics.fun" part specifies the internet address of the web page. The "?" tells the browser that one or more parameters are being passed to it. The "example=clock" part tells the browser that the parameter is the "example" parameter and that its value is "clock". Additional parameters may be separated with the "&" parameter.
